Diaphragm valve R677manualfor waterfor solvents
Add to favorites
Compare this product
Characteristics
- Type
- diaphragm
- Operation
- manual
- Media
- for water, for solvents
- Body
- flange, compact, PP, ABS, PVDF
- Applications
- industrial, chemical, OEM
- Number of channels
- 2/2-way
- Other characteristics
- ANSI, DIN, with integrated positioner
- DN
Min.: 15 mm
(0.591 in)Max.: 100 mm
(3.937 in)- Pressure
Min.: 0 bar
(0 psi)Max.: 10 bar
(145 psi)- Temperature
Min.: -10 °C
(14 °F)Max.: 80 °C
(176 °F)
Description

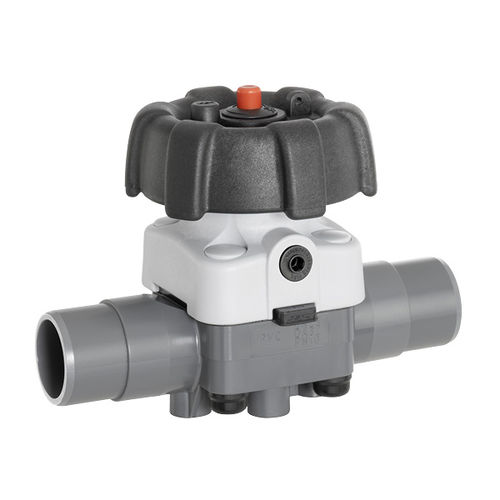

The GEMÜ R677 2/2-way diaphragm valve has a low maintenance plastic bonnet and is manually operated. An integral optical position indicator is standard. The High-Flow valve body provides compact dimensions at high flow rates.
-Same mounting height planes over multiple nominal sizes
-Compact plant design due to flow optimised valve bodies
-Integral optical position indicator
Body configurations:2/2-way body
Connection types:Flange | Spigot | Union end
Connection standards:ANSI | ASTM | BS | DIN | EN | ISO | JIS
Body materials:ABS | Inliner PP-H, grey / outliner PP, reinforced | Inliner PVDF/outliner PP, reinforced | PP, reinforced | PVC-U, grey | PVDF
Diaphragm materials:EPDM | FKM | NBR | PTFE/EPDM
Conformities:EAC | FDA | NSF
