Pilot-operated solenoid valve 85002-waywaterair
Add to favorites
Compare this product
Characteristics
- Control
- pilot-operated
- Ports/positions
- 2-way
- Medium
- water, air, oil
- Body
- threaded, NAMUR, aluminum, IP65
- Other characteristics
- ATEX, standard, double-acting, piston, plug
- DN
7 mm
(0.276 in)- Voltage
Min.: 12 V
Max.: 230 V
- Temperature
Min.: -10 °C
(14 °F)Max.: 60 °C
(140 °F)- Pressure
Min.: 2.5 bar
(36.3 psi)Max.: 10 bar
(145 psi)
Description

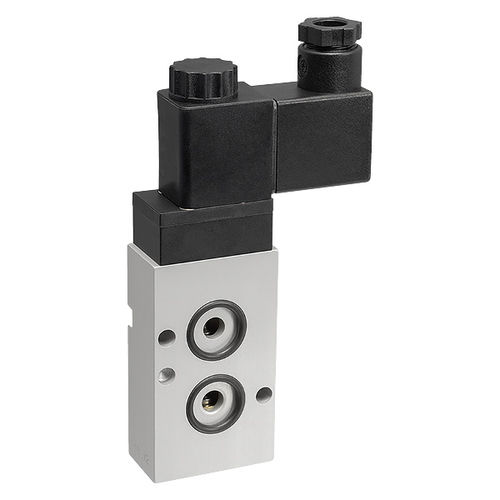

The GEMÜ 8500 servo assisted 3/2 or 5/2-way pilot solenoid valve is indirectly controlled. The body is made of aluminium. The plastic encapsulated coil is detachable. The piston valve has a soft elastomer seal.
Optional installation position
-Standard manual override
-Rotatable solenoid coil
-Suitable for activating single or double acting pneumatic actuators
-Available with NAMUR connection as an option
-Electrical connection types: Plug, design B
-Connection types: Threaded connection
-Body materials: Aluminium
-Conformities: ATEX | SIL
