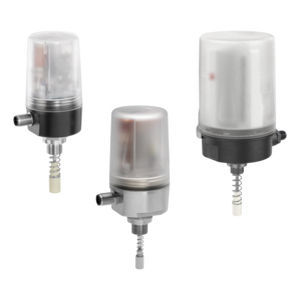

Position indicator 1242

currentfieldbusLED

The GEMÜ 1242 electrical position indicator is suitable for installation on pneumatically operated linear actuators. The position of the valve spindle is reliably electronically detected and evaluated using play-free and non-positive mounting. Intelligent microprocessor-controlled functions facilitate commissioning and support during operation. The current position of the valve is displayed via high-visibility LEDs and fed back via electrical signals. The GEMÜ 1242 has been specially designed for valves with a stroke of 2 to 46 mm. Features Fieldbus connection AS-Interface and DeviceNet (optional) Communication and programming interface IO-Link Adjustable switch point tolerances Speed-AP function for fast mounting and initialization High visibility position indicator by LED Can be fitted to GEMÜ valves or third-party actuators On-site or remote end position programming via programming input Technical specifications Ambient temperature:0 to 60 °C Linear measuring range:2 to 75 mm Radial measuring range:0to 90° Supply voltages:24 V DC Protection class:IP 67 Electrical connection types:M12 plug Communication modes:AS-Interface | DeviceNet | IO-Link Conformities:ATEX | CSA | EAC | ETL Listed C US | IECEx | NEC 500
