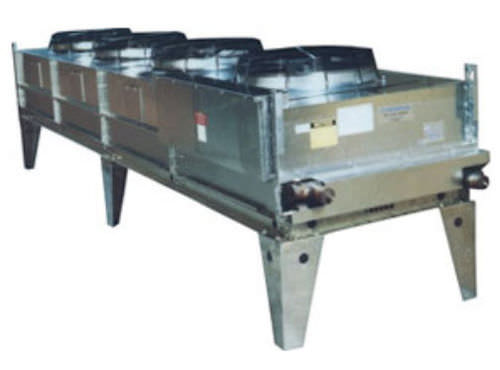

Dry cooler

- Eliminates high city water costs - Eliminates scaling and corrosion. - Eliminates high treatment and sewage costs. - Low operating costs. - Easy indoor or outdoor installation. - Glycol systems provide freeze protection. - Potential to reclaim waste heat, promoting additional utility savings. General Air Products Air Fluid Cooler Features - High efficiency coil; copper tubes are mechanically expanded into aluminum fins. Tube sheets are aluminum with collars, preventing tube wear due to thermal expansion. - Coil is tested to 400 PSIG under water. - Corrosion resistant construction, mill galvanized steel housing with access doors at each fan for inspection. Vent and drain connections are standard. - 208, 230, 460, 575, Volt all available as standard. 50 Hz units available - Consult Factory. - Weather resistant motors with sealed ball bearings, internal overload protection, shaft slingers and hardware designed for outdoor duty. - Direct drive propeller fans, providing uniform air distribution and quite efficient operation. - Optional weather resistant control panel for fan cycling (multiple fan units) constructed to NEMA 3 design (control voltage is 115/60/1 VAC)
