Roller crusher
mobilecoal

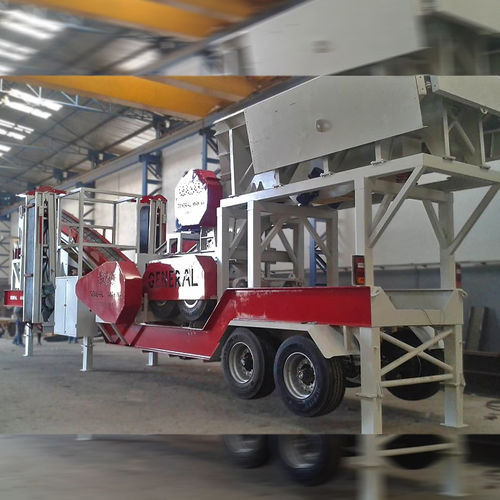

Roller crusher - GENERAL MAKINA - mobile / coal
Roller crusher - GENERAL MAKINA - mobile / coal
Roller crusher - GENERAL MAKINA - mobile / coal - image - 2
Roller crusher - GENERAL MAKINA - mobile / coal - image - 3
Roller crusher - GENERAL MAKINA - mobile / coal - image - 4
Roller crusher - GENERAL MAKINA - mobile / coal - image - 5
Add to favorites
Compare this product


Characteristics

Technology
roller
Mobility
mobile
Other characteristics
coal
Capacity

Max.: 350 t/h
(214.3 lb/s)

Min.: 30 t/h
(18.4 lb/s)

Motor power

75 kW
(101.97 hp)

Weight

38,000 kg
(83,775.66 lb)

Description

General Machinery Manufactures Mobile Roll Crushers also do. It is used to obtain the substance sand from corrosive or abrasive materials. Crushing rolls and primers manganese alloy is made of wear-resistant cast steel. Roll surfaces so as to provide the desired sized material is available as plain or grooved. Roll crushers are equipped with hidropinomatik protective system against the iron leak in the feed material. This system facilitates the adjustment range of the ball. Flywheel shaft and roll shafts are manufactured from C45 carbon steel, the body is protected against 22 series heavy duty roll bearings and is seated with labyrinth seals with dust and other effects. Roll hubs are made of cast iron, the shaft is locked with a special key tapered sleeve. Roll crusher mainly coal, coke, glass, fertilizers, potash, salt, lime, limestone, soft ore, brittle material and is used while producing higher quality cubic products for industrial minerals. These machines are preferred where the powder material is not desired. Call us for Mobile Roll Crushers prices now! 100% customer satisfaction. Guaranteed machine manufacturing.

VIDEO
