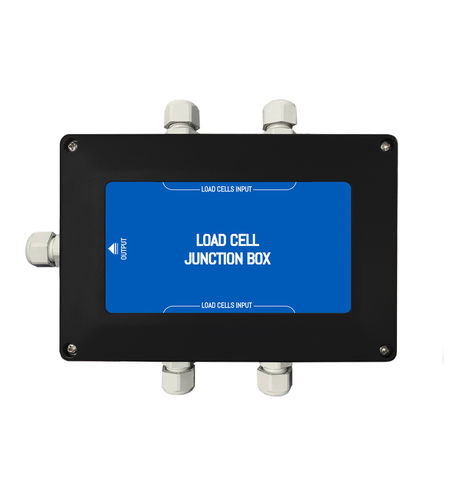

Wall-mounted junction box GM-JX-V

for load cells

GM-JX-V is not the normal and traditional load cell junction box. In addition to regulating the wiring function, it can compensate and correct the four-angle deviation by adjusting the resistance value of the precision potentiometer. On some special weighing occasions when the angle deviation is so large to affect the measurement results, this junction box can effectively solve the user's problems. Six-wire Connection Method 1. Compatible with four-wire load cell as well 2. Internal wire terminals are identified as: "EX+"-- EXCITATION + "SN+"-- SENSE + "EX-" -- EXCITATION - "SN-" -- SENSE - "SIG+"-- SIGNAL + "SIG-"-- SIGNAL - "GND"-- SHIELD Adjustment Method 1. Precision potentiometer VR1~VR4 can fine-tune the output signal of each load cell, which is used to adjust the four-angle deviation of the system. 2. Four-channel dip switches SW1 to SW4 are used to disconnect or connect the corresponding load cell. When it is in the OFF position, the load cell is disconnected from the system. When it is in the ON position, the load cell is connected to the system.
