Cycloidal gear reducer RV-320Ecoaxialsolid-shaft2 - 5 kNm
Add to favorites
Compare this product
Characteristics
- Type
- cycloidal
- Shaft orientation
- coaxial
- Shaft configuration
- solid-shaft
- Torque
- 2 - 5 kNm
- Configuration
- compact
- Performance
- high-precision, zero-backlash
- Applications
- for robots, for medical devices, antenna, for wind turbine, for AGV, for welding machines, industrial
- Other characteristics
- large
- Rotational speed
35 rpm
(219.91 rad.min-1)- Power
3.1 kW, 6.71 kW, 9.87 kW
(4.21 hp, 9.12 hp, 13.42 hp)
Description

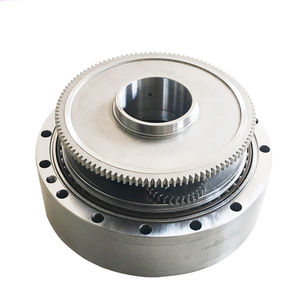

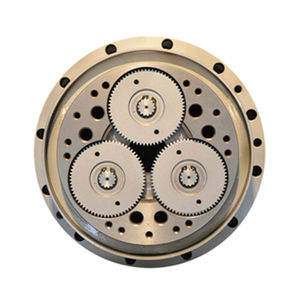

RV gear reducer RV-320E has features of high reliability, high precision, large torque, backlash <1 arc-minute, strong torsional rigidity, compact size, long lifetime, application for industrial robots, and welding positioner.
RV-320E Speed Ratio: 81,101,118,5,129,141,171 , 185.
RV-320E Application:
Used in the 1st and 2nd axis of industrial robots with payload 101-160KG.
Used in the 3rd axis of industrial robots with payload 161-300KG.
Used in the 4th axis of industrial robots with payload 301-600KG.
