Manual punching unit UPH serieshydraulicfor barsbending
Add to favorites
Compare this product
Characteristics
- Control
- manual
- Drive type
- hydraulic
- Product handled
- for bars
- Associated function
- bending, cutting
- Other characteristics
- portable
Description

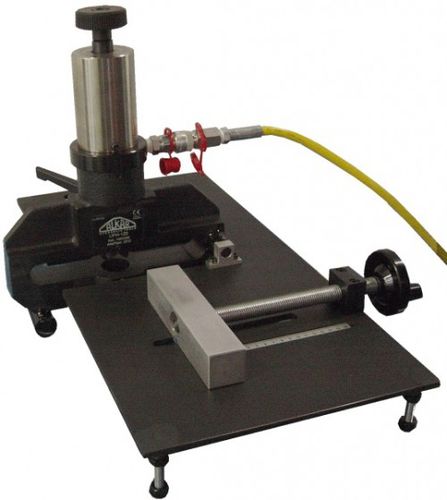

Gensco offers a selection of small, easily portable hydraulic tools for cutting, punching and bending busbar. Ideal for field service work and in plant requirements.
Designed for copper bars:
UPH-120 Capacity: 3/8" x 4-1/2" copper (10mm - 120mm)
UPH-200 Capacity: 5/8" x 8" copper (15mm - 200mm)
Suitable for punching holes in copper and aluminum,
max 5/8" thickness
Available punch sizes: 6 mm to 21 mm diameter
in 1 mm increments. c/w MESA adjustable
guide plate, for exact bar positioning for various
hole patterns, with scales in X & Y directions
c/w hydraulic work cylinder
Requires pump of max 10000 PSI
UPH-120 weighs approx. 53 lbs
UPH-200 weighs approx. 86 lbs
