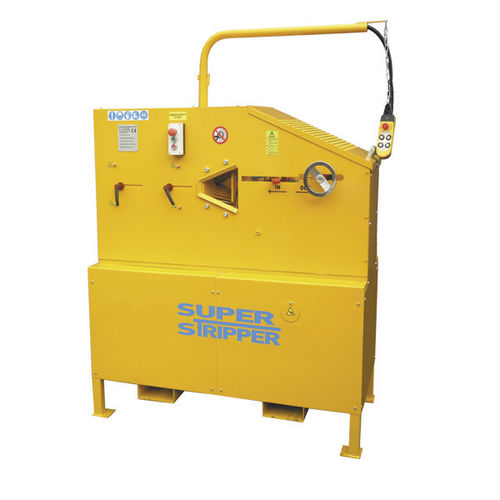

Cable stripping machine CSX-300

wireelectricautomatic

The CSX-300 cable stripping machine is a rugged and durable machine built for the toughest of working environments. It's can of strip just about any cable from 5/8" to 4-4/3" (15mm – 120mm) in diameter. The CSX-300 is built with a sorting table at the exit chute to save you from having to pick cable up from the floor. The sorting table makes for simple, easy and fast work when sorting the cables you want to recycle. Designed to strip Steel Wired Armor (SWA) & Steel Tape, XLPE, PVC, lead, Monel(REDA), nylon insulated cables and more. Features: Speed: approx. 65" (20 M)/min Equipped with 5.5 HP motor and gearbox Oversize feed rollers with teeth that are quenched, tempered & designed for intensive work with steel armored cable. Supplied with emergency safety braking system, guards, working table & full adjustments for cable size. Supplied with electrical starting panel with overload protection, forward and reverse controls. 3 phase, 60 Hz (voltage to be specified) Weight: Approx. 1980 lb. / 900 kg
