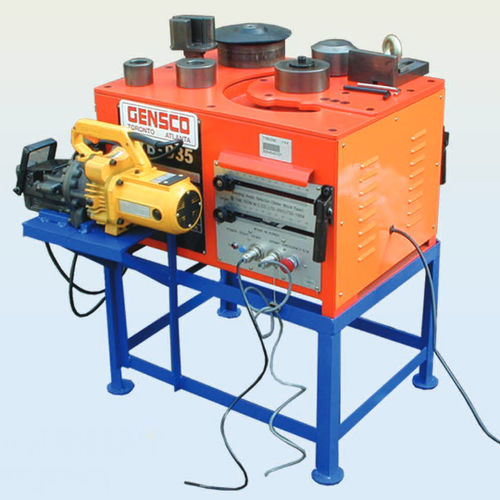

Electric bending machine TYB series

barautomaticdraw

Small, light-weight and portable, our line of single phase electric rebar benders and spiral radius machines offer an affordable choice when on-site or remote production is required. Single phase, 115V operation Capacity: #8 - 1" - 25MM c/w dual foot pedal controls, 2 drive rollers with bearings for rotation, and 3 center rollers 65, 95, & 125 mm diameter (2.5", 3.75" & 5" approx) Split pin stirrup assembly with 2 bending radii. Bars are not dragged through machine, but held firmly during bending. Adjustable hold back device. Simple slide block mechanism allows the operator to quickly and accurately adjust and pre-set up to 2 angles. Adjustable from 0 - 180 degrees, maximum single CCW bending direction Bends 1 x #8, 2 x #6, 2 x #5, 3 x #4, 4 x #3 Machine weight approx. 325 lbs
