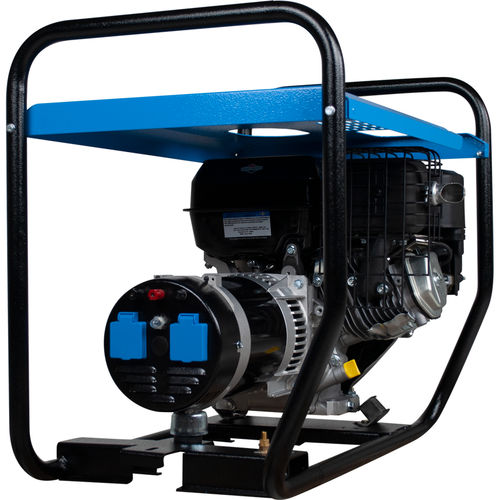

Gasoline engine generator set MG 8000 I-BE 6,6 LT

single-phaseportable50 Hz

PORTABLE SINGLE-PHASE POWER GENERATOR OUTPUT POWER 7 kVA PETROL ENGINE 3000 RPM 6,6 LT FUEL TANK Standard Features • Low oil level shutdown device • 2 x 16 A, 230 V - 50 Hz single-phase EEC sockets • Protections for power outputs • Earth Leakage Circuit Breaker (ELCB) Options available as factory options • Versions with different voltages • 60Hz version • Automatic voltage regulator (AVR) Accessories on request • Trolley: two-wheels and handles Noise level - • Lwa 98 (73 dB a 7 mt) AC generator - 50Hz - • Type: synchronous • Single-phase power (max.): 7 kVA - 230 V • Power Factor: cos 4> 0,8 Petrol Engine 3000 rpm - • Type: Briggs & Stratton XR2100 - 1 cyl. - 1 1,9 HP (8,9 kWm) - 420 cm3 • Cooling system: air • Starting system: recoil • Fuel tank capacity: 6,6 It • Fuel consumption @ 75%: 3,6 It/h Other features - • Insulation Class: H • Ambient temperature: 40 °C (*) • Altitude: 1000 mt (*) • Mechanical Protection: IP 23 • Dimensions (L x W x H): 770 x 480 x 625 mm • Dry weight: 84 kg
