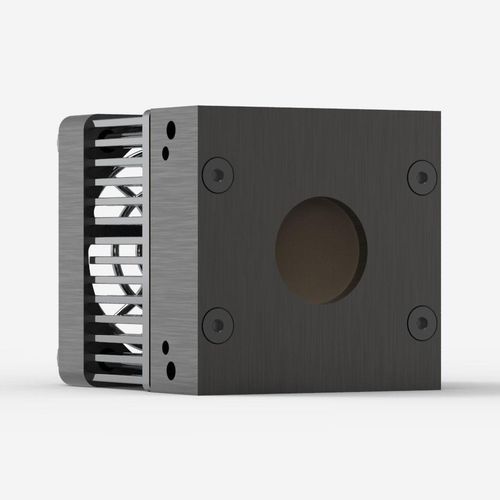

Compact laser power detector UP19K-110F-H9-D0thermopile
Add to favorites
Compare this product
Characteristics
- Options
- compact, thermopile
Description
MODULAR CONCEPT
Increase the power capability of your detector: 5 different cooling modules
HIGH PERFORMANCE
• Fast rise time (0.6 sec)
• High damage threshold (45 kW/cm2)
COMPACT DESIGN
Only 20.6 mm thick (15S model)
ENERGY MODE
Measure single shot energy up to 15 J
SMART INTERFACE
Containing all the calibration data
MEASUREMENT CAPABILITIES
Maximum average power (continuous)
110 W
Maximum average power (1 minute)
150 W
Noise equivalent power1
3 mW
Spectral range2
0.193 - 20 μm
