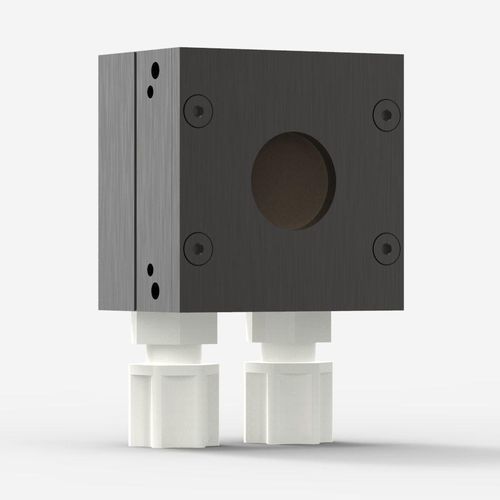

Compact laser power detector UP19K-200W-H9-D0

thermopilewith water cooling

MODULAR CONCEPT Increase the power capability of your detector: 5 different cooling modules HIGH PERFORMANCE • Fast rise time (0.6 sec) • High damage threshold (45 kW/cm2) COMPACT DESIGN Only 20.6 mm thick (15S model) ENERGY MODE Measure single shot energy up to 15 J SMART INTERFACE Containing all the calibration data MEASUREMENT CAPABILITIES Maximum average power (continuous)1 200 W Maximum average power (1 minute)2 200 W Noise equivalent power3 3 mW Spectral range4 0.193 - 20 μm Typical rise time5 1.5 s Typical power sensitivity6 0.23 mV/W Power calibration uncertainty7 ±2.5 % Repeatability ±0.5 % 1. Minimum cooling flow 0.5 liters/min, water temperature ≤ 22°C, 1/8 NPT compression fittings for 1/4 inch semi-rigid tube. Contact Gentec-EO for clean deionized water cooling module option. 2. Minimum cooling flow 0.5 liters/min, water temperature ≤ 22°C, 1/8 NPT compression fittings for 1/4 inch semi-rigid tube. Contact Gentec-EO for clean deionized water cooling module option. 3. Nominal value, actual value depends on electrical noise in the measurement system. 4. For the calibrated spectral range, see the user manual. 5. With anticipation. 6. Into 100 kΩ load. Maximum output voltage = sensitivity x maximum power. 7. Including linearity with power.
