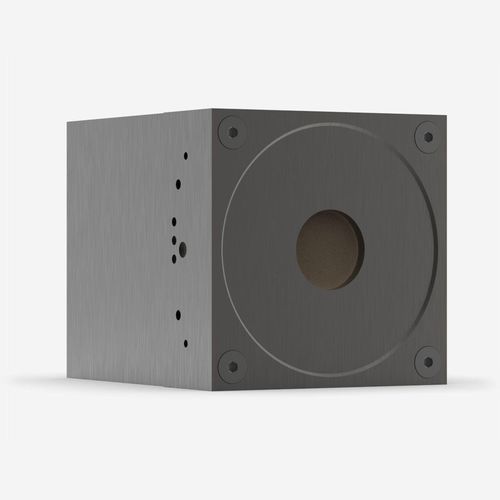

Thermopile laser power detector UP25N-100H-H9-D0

MODULAR CONCEPT Increase the power capability of your detector: 4 different cooling modules HIGH PERFORMANCE • Fast rise time (1.3 sec) • High damage threshold (45 kW/cm2) • ENERGY MODE ENERGY MODE Measure single shot energy up to 40 J SMART INTERFACE Containing all the calibration data MEASUREMENT CAPABILITIES Maximum average power (continuous) 100 W Maximum average power (1 minute) 200 W Noise equivalent power1 3 mW Spectral range2 0.193 - 20 μm Typical rise time3 1.3 s Typical power sensitivity4 0.23 mV/W Power calibration uncertainty5 ±2.5 % Repeatability ±0.5 % 1. Nominal value, actual value depends on electrical noise in the measurement system. 2. For the calibrated spectral range, see the user manual. 3. With anticipation. 4. Into 100 kΩ load. Maximum output voltage = sensitivity x maximum power. 5. Including linearity with power.
