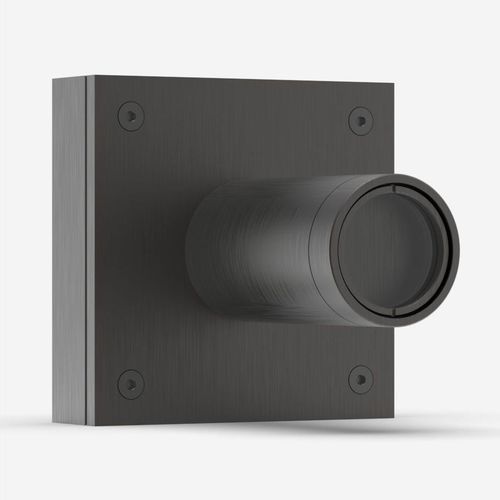

Thermopile laser power detector XLPF12-3S-H2-D0

LOW POWER THERMOPILE Noise level of a photo detector with the large bandwidth and high power capacity of a thermal device MINIMAL THERMAL DRIFT Only 6 µW/°C (with the IR filter) HIGH SENSITIVITY 200 mV/W (without the IR filter) SPECIAL MODEL FOR ULTRASHORT PULSES VP (volume absorber) version is perfect for low power lasers with ultrashort pulses (ps and fs) IR FILTER Removes unwanted IR interference ISOLATION TUBE Eliminates power fluctuations created by air turbulence MEASUREMENT CAPABILITIES Maximum average power (continuous) 3 W Maximum average power (1 minute) 3 W Noise equivalent power1 0.5 μW Spectral range2 0.28 - 2.1 μm Typical rise time3 2.5 s Typical power sensitivity4 180 mV/W Power calibration uncertainty5 ±2.5 % Repeatability ±0.5 % Thermal drift6 6 μW/°C 1. Nominal value, actual value depends on electrical noise in the measurement system. 2. For the calibrated spectral range, see the user manual. 3. With anticipation. 4. Into 100 kΩ load. Maximum output voltage = sensitivity x maximum power. 5. Including linearity with power. 6. With MAESTRO.
