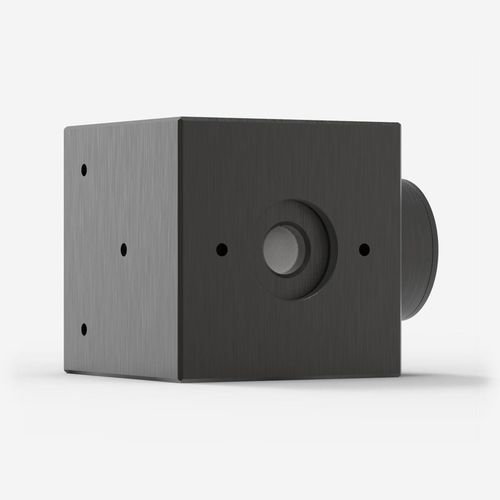

Laser power detector with integrating sphere IS12L-9S-RSI-INT-D0

thermopile

FASTEST RESPONSE With its silicon sensor, the integrating sphere is as fast as a photodiode. HIGH AVERAGE POWER Measure up to 1000 W of continuous power. RESISTANT COATING Our proprietary coating is designed to be strong. Its damage thresholds are orders of magnitude higher than any other "white" coatings on the market. PRECISE CALIBRATION The IS detectors have a NIST-traceable calibration for their entire calibrated spectral range. Temperature compensation completes the calibration to give you the most accurate and stable measurements. CHOICE OF OUTPUT The IS detectors are available with two output options: • INTEGRA with USB output (-INT) • INTEGRA with RS-232 output (-IDR) MEASUREMENT CAPABILITIES Maximum average power (continuous) 9 W Noise equivalent power1 1 μW Spectral range 340 - 1100 nm Typical rise time 0.2 s Linearity with power ±1 % Sphere inner diameter 50 mm Ø Maximum incidence angle ± 10° Maximum divergence 10° (half-angle)
