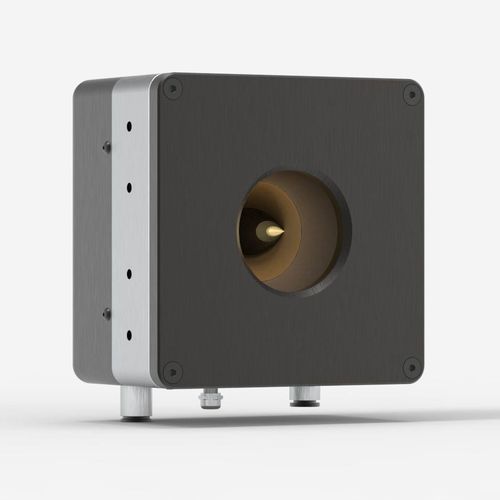

High-power laser power detector HP60A-15KW-GD-IMP-D0

with water cooling

Handles up to 15 kW of continuous power with our standard models. Custom models available for higher powers (See SUPER HP). STABLE READING Less sensitive to variations in water cooling temperature than any other high power water-cooled meter on the market LARGE APERTURE Our standard HP models (4KW, 12KW and 15KW) have a very large effective aperture up to 125 mm Ø to accomodate even the largest laser beams. Larger apertures with various shapes are available upon request (See SUPER HP). AVAILABLE WITH YAG AND CO2 CALIBRATION All HP Models can be calibrated at YAG and CO2 wavelengths with a calibration uncertainty of +/- 5% DIRECT USB CONNECTION TO A PC Each head comes with both a DB-15 connector (for use with a Gentec-EO monitor) and a USB2.0 output for direct connection to a PC.
