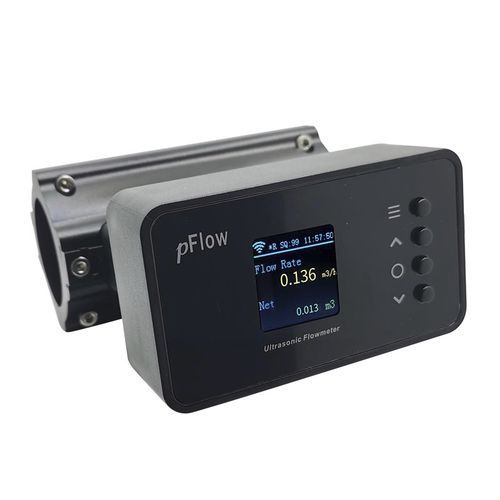

Ultrasonic flowmeter F3 series
volumefor waterclamp-on

ultrasonic flowmeter
ultrasonic flowmeter
ultrasonic flowmeter
ultrasonic flowmeter
ultrasonic flowmeter
Add to favorites
Compare this product


Characteristics

Technology
ultrasonic
Type
volume
Fluid
for water
Installation
clamp-on
Material
stainless steel, PVC
Communication
4-20 mA, RS485, Modbus
Protection level
IP54
Applications
industrial, irrigation
Other characteristics
with LCD display
Process temperature

Max.: 60 °C
(140 °F)

Min.: -10 °C
(14 °F)

Precision

2 %

Repeatibility

0.2 %

Description

For Household Water, Aquaculture, Farm Irrigation, Automatic Car Wash, pure water/ultra pure water, Industrial water and flow measurements F3CL&F3RO adopts the ultrasonic transit time measurement principle, combined with Gents patented flow algorithm technology, it realizes accurate measurement of the fluid flow in the pipe. The product is all-in-one and clip-on structure design, which is simple and convenient to install. Only four steps are needed all along. The installation process requires no contact with fluid media and no need to shut down. The standard configuration of the product is the RS485 communication interface commonly used in industrial occasions. With MODBUS protocol, it can realize remote monitoring and data transmission of instruments. Function specifications Communication Interface: RS485 (standard); Support FUJI Protocol and MODBUS Protocol Power Supply: 10~36VDC/500mA Display Screen: 1.44 " LCD color screen, resolution 128 * 128 Humidity: Relative humidity 0~99%, No condensation Physical specifications Transmitter: Integrated Transducer: Clamp on Cable Wires: φ5 six core cable, standard length: 2m Performance specifications Flow Velocity: 0.03~5.0m/s (0.1~16ft/s) Function specifications Power Supply: 10~36VDC/500mA Output: OCT & Relay Keyboard: 4 physical keys Humidity: Relative humidity 0~99%, No condensation
