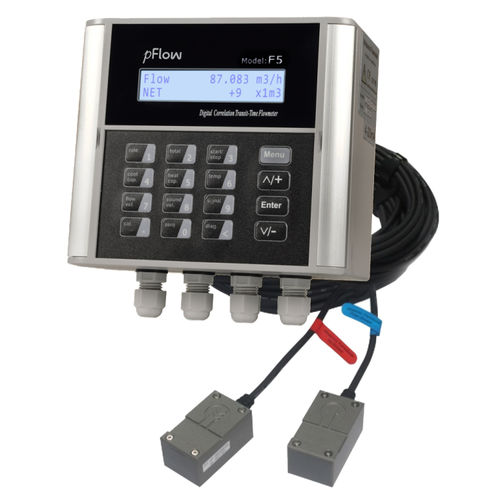

Ultrasonic flowmeter F5

volumefor waterDN25 - 1"

Integrate into your IOT management system to provide remote measurement services. Introduction F5 ultrasonic flowmeter uses the latest digital technology and low-voltage broadband pulse transmission. The instrument can tolerate a small amount of bubbles or suspended solids in most industrial environments. The addition of WiFi communication module enables F5 to have the ability to communicate wirelessly. All measurement data can be uploaded to the cloud server to realize unattended and remote management. Main Features l Wall-mounted transmitter and clamp-on transducers l Wireless communication and Cloud service Applications HVAC system, building automation system, farming irrigation system, residential water supply system, cleaning system, recirculating aquaculture system(RAS), etc. Function specifications Optional Outputs OCT Pulse output:0~5000Hz. Analog output: WIFI, 4~20mA, max load 750Ω. Power supply 10~36VDC/1A Keypad 16(4×4)key with tactile action Display 20×2 lattice alphanumeric, back lit LCD. Humidity Up to 99% RH,non-condensing Physical specifications Transmitter Transducer Transducer cable Standard cable length:30ft(9m). Weight Transmitter:approximately 0.7kg; Transmitter:approximately 0.4kg Description F5 Digital Correlation Transit Time Flowmeter Installation method:wall mount Keyboard:16 (4×4) touch keys Display:20×2,alphanumeric,backlit LCD Power supply:10-36V DC@1Amax
