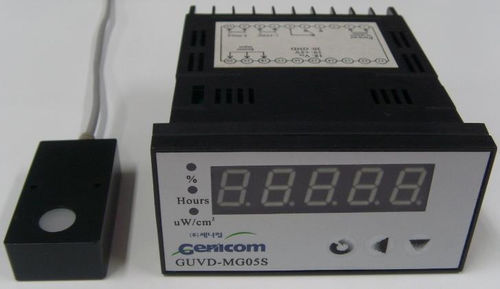

UV radiometer MG05 series
Add to favorites
Compare this product
Characteristics
- Options
- UV
Description
- Fixing method : Panel Insertion
- Power : Display :
- Display
- Absolute Optical Power : Max. 20 mW/cm2
- Relative Power (unit : %)
- Accumulative Time (unit : Hrs)
- Output
- 1 Relay (NO/NC)
- 1-5 V Voltage (Depends on Relative Power)
- 4-20 mA Current (Depends on Relative Power)
- Max power (5.1 version)
- RS485 Communication (5.1 version)
- Dose Display(mJ/cm²) (5.1 version)
- Size : 96 mm X 48 mm X 112 mm
- Operating Temperature
- Display :
- UV Sensor Probe :
- Detection Range
- UVV : 230 ~ 395 nm
- UVA : 220 ~ 370 nm
- UVB : 220 ~ 320 nm
- UVC : 220 ~ 280 nm
- UV Purification (Water, Air)
- UV Curing
- UV Lamp/LED monitoring
