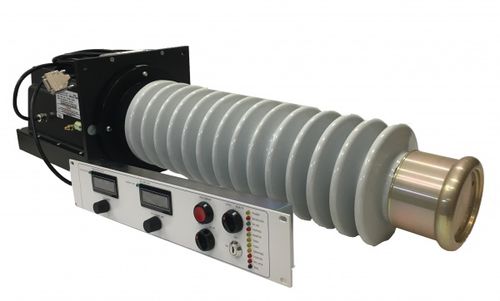

High-voltage power supply Mercury Series

AC/DCdigital

The Genvolt ‘Mercury’ series units were designed specifically for operation with the patented ion Blast air purification system which can achieve up to 99.98% cleaning efficiencies even with micron-sized particles. Interlock An interlock keyswitch is provided on the front panel of the control unit. A facility for an external interlock loop is also included. The Genvolt ‘Mercury’ series units were designed specifically for operation with the patented ion Blast air purification system which can achieve up to 99.98% cleaning efficiencies even with micron-sized particles. However, the system is available for use in other fields of application that require a source of HVDC. The Mercury is available in three basic modules: 1) 150kV, 960W provides 8mA up to 120kV with linear de-rating to 6mA at 150kV. 2) 120kV, 480W provides 4mA up to 120kV with linear de-rating to 3mA at 150kV. 3) 100/120kV, 200W provides 2.5mA up to 80kV with linear de-rating to 1.8mA at 100kV. Control is by means of an external control unit. This is available in two types. Type ‘A’, which is illustrated above, has full digital metering facilities and includes a remote interface. Adjustment down to zero is possible with the type ‘A’ with independent control of both mA and kV settings. Type ‘B’ has simple bar graph indication of current and voltage and a rotary switch to derate either the current demand or voltage demand from maximum over a limited range.
