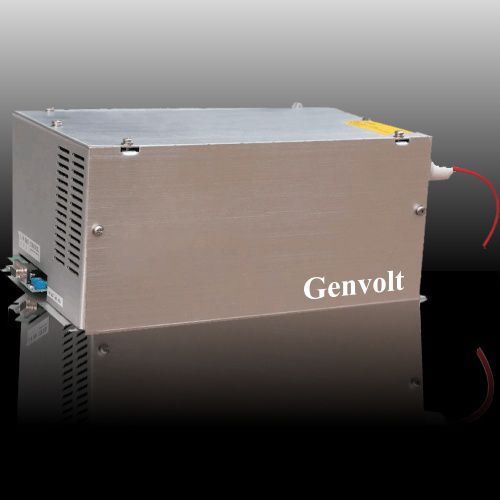

AC/DC power supply CCL1500

adjustablehigh-voltagehigh-performance

CCL1500 series high voltage power supply is a high reliability capacitor charging power supply that combines high performance with the latest technology. This cost effective power supply is specially designed by Genvolt for applications that require a capacitor charger. The rated output power is 500W with a peak output power of 1500W. The CCL1500 high voltage capacitor charger power supply has a single output and is available in output voltages of 5kV, 10kV, 20kV, 30kV, 40kV & 50kV. Both positive and negative output polarity (with respect to ground) are available please specify which at the time of order. Capacitor Charging Power Supply Features •Optional remote control output voltage or local control •Potentiometer adjustment •Charge and discharge frequency can be customised •Repeatability is better than 0.5% •Ground potential is increased •Output voltage and current can be continuously adjusted •Output polarity can be specified by user •Small size, light weight, stable output, high performance (85%)
