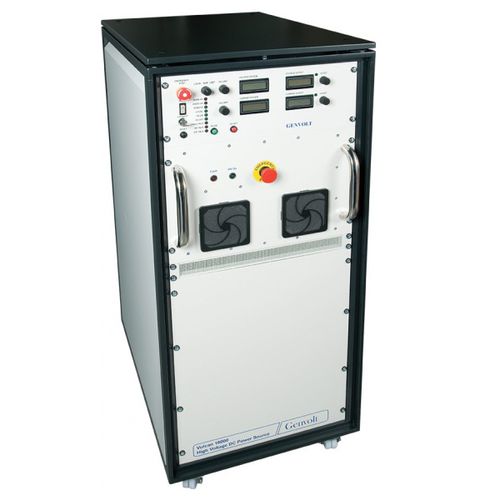

AC/DC power supply Vulcan Series

three-phasefor X-ray sourceswith power factor correction (PFC)

The Vulcan range has been designed principally to address the demanding requirements of electron guns, including electron beam welders. The Vulcan power supplies provide a rapid response to load changes and are highly tolerant of gun arcs. This makes them suitable for use as X-ray power supplies and for a variety of scientific research applications. An RS485 serial link enables the user to control the output and to view a diagnostic output, using a terminal or host computer. Alternatively, analogue inputs may be used to control the outputs. As this power supply can be adapted to deliver outputs from 10kW to 24kW and up to 200kV, the specification below is just an example of the numerous options available. Basic Specification The input voltage range can be between 380/220VAC -10% to 415/240VAC +10%, three phase, four-wire plus Earth, 50 or 60Hz. The inputs are power-factor corrected. In cases where no neutral connection is available, this should be specified at time of order. Supplies may also be 210/120VAC three wire but this must also be specified at time of order.
