AC/DC power supply Orion single-phasefor industrial applicationsfor X-ray sources
Add to favorites
Compare this product
Characteristics
- Type
- AC/DC
- Network
- single-phase
- Applications
- for industrial applications, for X-ray sources
- Input voltage
Max.: 240 V
Min.: 200 V
- Output voltage
Max.: 60,000 V
Min.: 0 V
- Current
Max.: 0.07 A
16 A
Min.: 0 A
- Power
Max.: 3,000 W
Min.: 0 W
Description

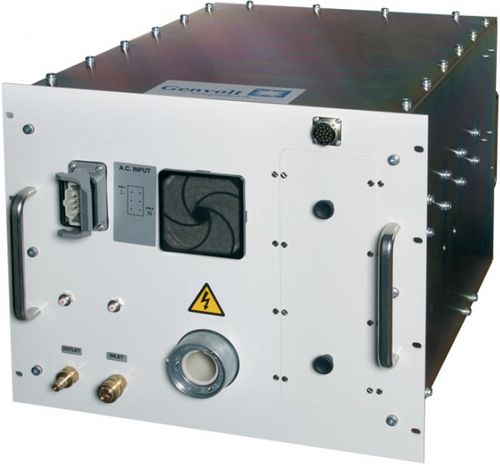

The Orion Range are Industrial 60kV, 3kW x-ray generators.
Power Supply
Input voltageSingle phase 200-240VAC, 50/60Hz
Mains connection6 way Harting connector HAN6E
Current rating16A
Output Ratings
Output voltage0 to 60kV
PolarityNegative
Output powermax. 3 kW
Output connectionO4, locked by mechanical nut only
Output current0 to max. 75mA
Voltage ripple< 1% @ 60kV 50mA
Voltage Regulation
Load0.1% of output voltage no load to full load.
Line0.1% for ±10% change in input voltage.
Filament Control
Filament voltage0 to 12Vrms
Filament current0 to 5Arms
