Power cable for high-voltage applicationssilicone-insulated
Add to favorites
Compare this product
Characteristics
- Type
- power
- Applications
- for high-voltage applications
- Material of the insulation
- silicone-insulated
- Nominal voltage
Max.: 60 kV
Min.: 10 kV
- Temperature
Max.: 200 °C
(392 °F)Min.: -60 °C
(-76 °F)- Cross-section
1.31 mm², 2.08 mm², 22 mm²
(0 in², 0 in², 0.03 in²)
Description

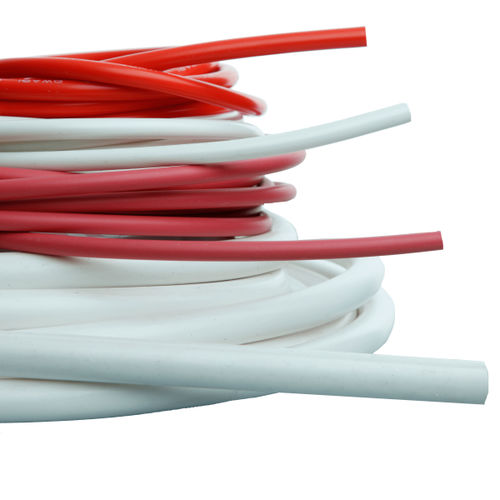

Genvolt stock and supply a variety of high voltage cable from 10kV to 50kV that are available as either TV or silicone cable.
Genvolt AWM Appliance Wiring Material cables are suitable for internal wiring of CRT-based television, machine, electronic oven, copy machine, plant construction, toolbuilding etc.
Rating - These high voltage wires are approved by both UL and CSA standard for 10, 20, 30, 40 and 50kV.
Flame retardant - 50kV (DC) at 105˚C. These wires pass the vertical flame retardant test based on UL VW-1 and CSA FT1.
Silicone cables have a high bend radius to allow for easy installation and a maximum temperature rating of up to 200°C. Their resistance to humidity, radiation, UV and corrosion makes them ideally suited for a wide variety in installations.
