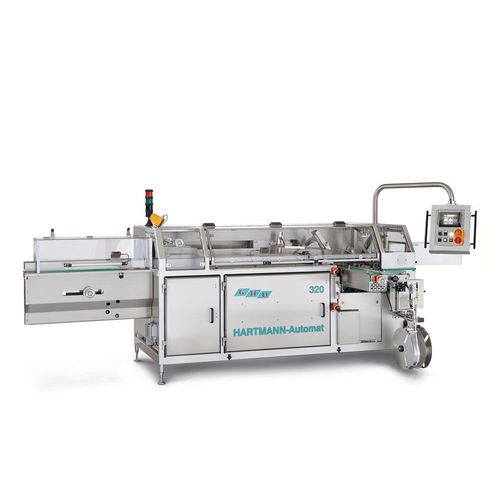

Automatic packing machine VS 320

horizontalbagfor paper

Fully automatic bag packaging machine for sliced bread. Due to its universal application capacity for packaging and closing of foil and paper bags, the VS 320 machine meets the varied international packaging requirements. The drive concept design guarantees constant switching point accuracy for all functions and reduces maintenance to a minimum. By consistently separating the product work area from the mechanical drive, this machine concept also meets all cleanroom requirements. Dimensions: - Length: approx. 3630 mm // approx. 3630 mm // approx. 4530 mm, Width: approx. 1935 mm, Heigth: min. 1620 mm // min. 1620 mm // min. 1730 mm, Working height: min. 955 mm Weight: - 1500 kg // 1550 kg // 1700 kg Product dimensions: - Length: max. 300 mm // max. 360 mm // max. 450 mm, Width: max. 260 mm, or Diameter: max. 260 mm // max. 300 mm // max. 300 mm, Height: max. 150 mm Speed: - adjustable Controller: - Omron Operating panel: - Touchscreen Control voltage: - 24 V, DC Frequency controller: - Hitachi Pneumatic system: - Festo Power supply: - 400 Volts / 50 cycles Power consuption: - 4 kW Compressed air: - min. 6,0 bar (ISO 8573-1) Packing material: - pre-manufactured plastic bags, or paper bags (paper with clip closure only) Operating side: - left / right Protection class: - IP 54 Adjustment: - manual
