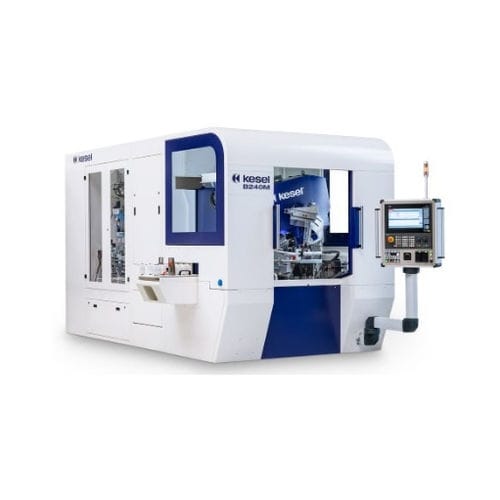

Vertical milling machine B240M

horizontal

Performance is power. The B240M, the first in the new B Series of machines from Kesel, not only builds upon the global success of the FS 2500, but truly redefines the performance level of bandsaw blade milling machines. A completely new machine from Kesel, the B240M has been designed and engineered for pure productivity. The hybrid core, consisting of a steel and mineral-composite machine bed and column, delivers increased machine stiffness and dampening which transfers through to ensure the smoothest, highest quality milling ever achieved. Optimised for the milling of carbon, bi-metal and carbide-tipped backing material, the B240M is capable of using 240 mm wide milling cutters as standard, ensuring maximum output. Bandwidths up to 125 mm, and the full spectrum of tooth profiles, from 32 – 0.5 TPI, can be milled on the B240M. With focus on productivity, speed of use and reduction of material wastage, the B240M employs the latest technology to ensure your manufacturing effectiveness remains at the forefront of industry capability Milling head TypeF 350 modified gear train with enhanced motor rating Power45 kW S6 40 % RPMmax. 450 rpm infinitely variable Milling arborSK 50 Min. diameter of milling cutter165 mm + 2 x milling depth + 5 mm safety + resharpening distance (acc. to cutter manufacturer) Max. diameter of milling cutter310 mm (depending on cutter cone angle / rake angle saw) Max. tool widthmax. 240 mm (depending on cutter cone angle / rake angle saw) Rotational axisCutting angle swivel range +2 up to -20 °
