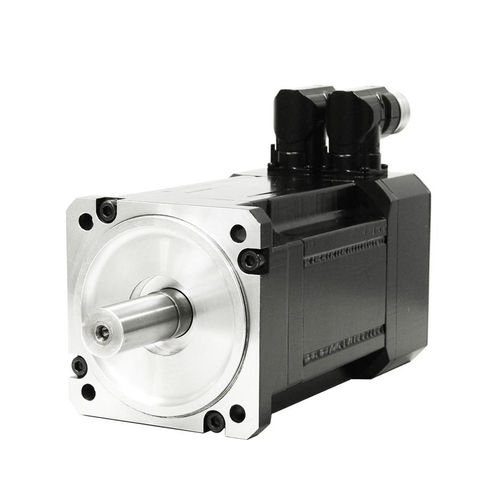

AC servomotor KSY-Q series

three-phaserobustcompact

After careful market evaluation, GEORGII KOBOLD has further expanded the KSY-D series with the new, high-value synchronous motors of the KSY-Q series. The KSY-Q synchronous servo motors fully complement the KSY-D-series in the middle speed range by offering a significantly higher torque, a robust construction and an even shorter overall length! To cover most applications, the KSY-Q motors are available with five different flange sizes, 2-3 motor lengths per size, and with nominal torques ranging from 0.45 to 33 Nm at rated speeds up to 3.000 RPM. • Extremely high torque density and a shorter length • Very compact and robust design • High overload capacity and highly dynamics • High positioning accuracy thanks to high-resolution encoder systems • Vibration level R (accd. To DIN VDE 0530-14) with level S as an option • Flange dimensions are standardized according to DIN 42 677 (special flanges available on request), Flange accuracies to DIN 42 955 • Maintenance free • IP 54 Protection • Optional holding brakes Please ask about customized solutions, e.g, special flanges, special shafts, increased permissible radial and axial loads, etc.
