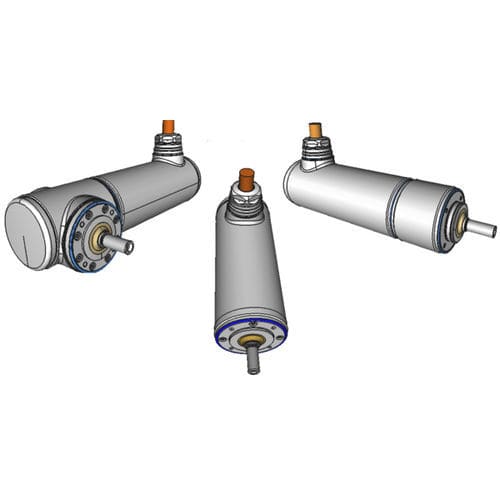

Compact servomotor KS 06 seriesthree-phase230 V400 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- three-phase
- Voltage
- 400 V, 230 V, 48 V
- Protection class
- IP69K
- Configuration
- with brake, stainless steel, compact
- Applications
- food
- Power
Max.: 0.27 kW
(0.367 hp)Min.: 0.075 kW
(0.102 hp)- Torque
Max.: 4.7 Nm
(3.4665 ft.lb)Min.: 0.16 Nm
(0.118 ft.lb)- Rotational speed
600 rpm, 2,000 rpm, 12,000 rpm
(3,769.91 rad.min-1, 12,566.37 rad.min-1, 75,398.22 rad.min-1)
Description
The new Ø59mm size was developed for applications in the food and pharmaceutical industries that allow only limited installation space. With this compact drive, GEORGII KOBOLD now offers stainless steel motors and gear motors with diameters ranging from Ø59mm to Ø150mm. All motor sizes can be delivered as compact gear motors with integrated planetary, bevel, or cycloid gears.
• Hygienic Design according to EHEDG guidelines
• Housing 316L, 1.4404
• Rated torgue: 0,16 - 0,59 Nm, Peak torque 0,7 - 2,7 Nm
• Compact Gearmotor with i= 3-10
• IP69k Protection Class
• Single-Cable Solution with Resolver or DSL Encoder System
