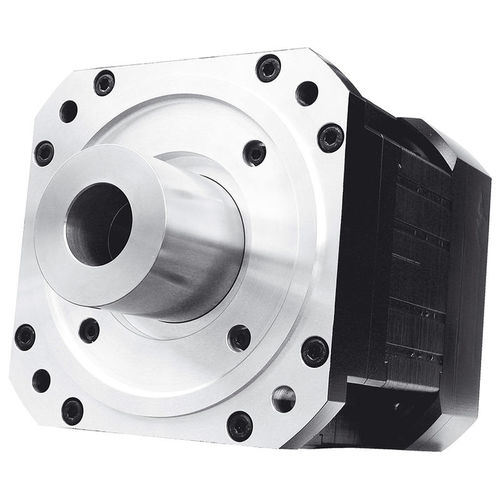

DC motor KTY-Q series

synchronous230 V400 V

Our new KTY series of housed synchronous torque motors not only sets a new benchmark with regard to maximum drive system torque and stiffness, but they are also extremely compact. The KTY series is a useful alternative to geared motors in any application. The torques are sensibly graduated from 6.5 to 270 Nm, which means that Direct-Drive Technology is finally available in this entire torque class! • High overloading capacity and extremely dynamic • High positioning accuracy because of the use of high-resolution encoder systems and the elimination of components that are susceptible to play and friction • Available with full shaft with without keyway or with a hollow shaft on either the A and/or B side. Blind hole shafts, shafts with shrink disks or loose flanges are also possible. • Oscillation strength R is standard, but Class S (per DIN VDE 0530-14) is also possible • Flange dimensions are standardized to DIN 42 677, but special flanges are also available. • Flange accuracy in accordance with DIN 42 955 • If desired, we can also increase the permissible radial and axial shaft loads • Fail-Safe brakes are also an option The KTY-Q torque-motor series comes with three different flange sizes, and each flange size is available with 3-4 stack lengths. This broad range of motors neatly and efficiently covers your need for direct-drive torques from 14 to 270 Nm. The square design without a housing provides you with a very cost-effective direct-drive solution where IP54 is sufficient protection.
