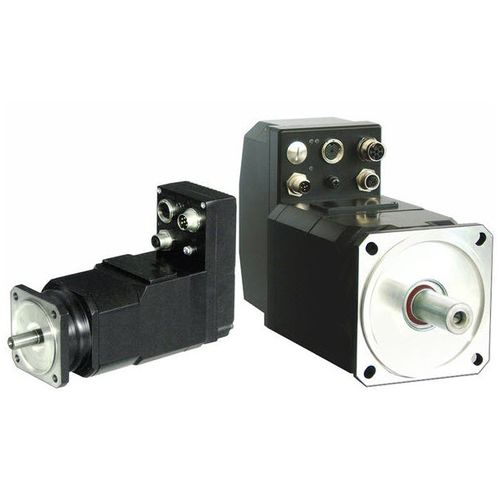

DC servomotor KSD series

220 Vmodularcompact

GEORGII KOBOLD – The distributed KSD servo drives consist of a highly-dynamic servo motors with an integrated servo amplifier. They can also be equipped with a gearboxes and brakes. The KSD series offers a wide variability and a high integration capability; they are best suited for modular machine concepts in combination with a variety of independent axes. Integrated electronics allow for the effortless connection to common bus systems like Profibus-DP, CANopen or RS485. The on-board digital and analog I/O and the integrated technology functions allow for simple or single-axis drive applications with PLC to be created without a bus system. • Compact drives for intermittent operation to be mounted directly on the machine • Positioning, Speed and Torque control as well as electronic gearing • Digital 4-Quadrant Controller • Integrated flow control • Isolated Fieldbus interfaces: - CANopen DSP402 - Profibus DP - RS 485 • Separate RS 232 interface for configuration • Versions for connection to 24-60 VDC or 230 VAC power supplies • Separate 24 VDC logic power supply • Status and diagnostic functions via LED's • Digital and analog inputs and outputs • Optional: - Safe Stop according to EN 954-1 category 3 - Various encoder systems - Holding brakes - Planetary gearboxes
