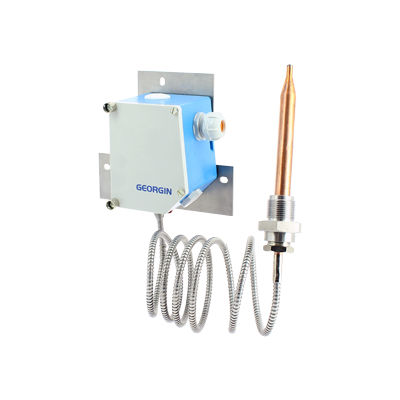

Gas expansion temperature switch G seriesIP66remote sensing
Add to favorites
Compare this product
Characteristics
- Heating technology
- gas expansion
- Protection level
- IP66
- Other characteristics
- remote sensing
- Temperature
Min.: -20 °C
(-4 °F)Max.: 265 °C
(509 °F)
Description
case: polyarylamide + fiber glass
Max. temperature:
» GB : 135°C
Sensing element: direct bulb or through capillary
Material: copper
Switch: 1 dry SPDT with Gemov
Current rating: 10A/240VAC - 0.3A/110VDC
Cable gland : nickel plated brass M20 (Ø6-13)
Fixation: PV-TV type with Paulstra mounting
According to P798-B plan P798-B
Certificate:
» APPROVAL CERTIFICATE N° L 89/9
uses
Temperature switches designed for railway applications
Technical data
Capillary temperature switch G series
Housing : polyarylamide+fiberglass
Range : 45 to 120 °C
Max temperature : 135 °C
Sensing element : 2,5m capillary bulb Ø12x120 mm
Material : copper
Capillary protection : st st
Connection M22x150 ; L2 = 90 mm under 6 pans
Switch : 1 tropicalized SPDT with Gemov
Adjust deadband : 10A/240Vac - 0,3A/110Vcc
Cable gland : polyamid M16 (5-10) on side
Type fixing PV-TV with Paulstra amortissment
Following drawing P792-015
Catalogs
fc-gc6rfbg
2 Pages
