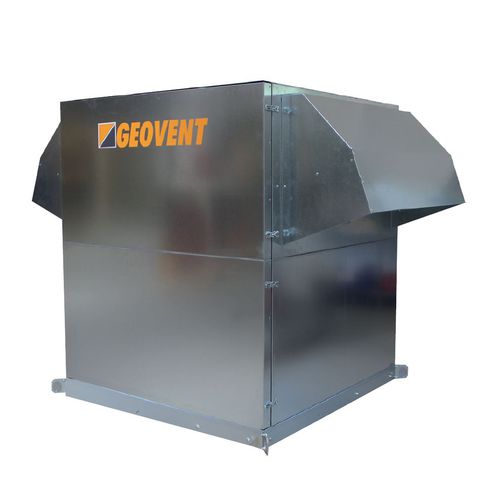

Rooftop air handling unit GRTU-3800+
for warehouseheat-recoverymodular

rooftop air handling unit
rooftop air handling unit
rooftop air handling unit
rooftop air handling unit
rooftop air handling unit
rooftop air handling unit
rooftop air handling unit
rooftop air handling unit
rooftop air handling unit
Add to favorites
Compare this product


Characteristics

Configuration
rooftop
Applications
for warehouse
Type
heat-recovery
Other characteristics
modular, outdoor, compact
Air flow

Max.: 4,500 m³/h
(158,916 ft³/h)

Min.: 0 m³/h
(0 ft³/h)

Description

The GRTU-3800+ roof mounted unit is an effective air handling unit with heat recovery for simple and easy mounting on the roof of eg. a garage, a workshop or a production facility. The wide range of accessories for the GRTU makes it a good match for a variety of ventilation applications, where high heat recovery and low energy consumption is required. GRTU 3800+ GRTU 3800+ is based on a rotating heat exchanger, which recovers up to 84% of the heat from the extracted air. The air inlet and outlet is integrated in the sides of the unit and effective filters ensure that the high efficiency on the heat exchanger is maintained. Description The EC fans fitted with direct drive B-impellers comply with the standard of energy effectiveness class IE3. The fans are 100% continuously variable, so the airflow is easily balanced for the required task. The entire construction is galvanized and sealed in the joints. Modular construction with rail systems makes inspection / replacement of components easy, and gives the unit flexibility in regards to installation and fixation of accessories. GRTU 3800+ can be mounted on both flat and sloping roofs. In both cases only one roof base is required. The unit’s mounting frame makes it easy to place it in the roof base.
