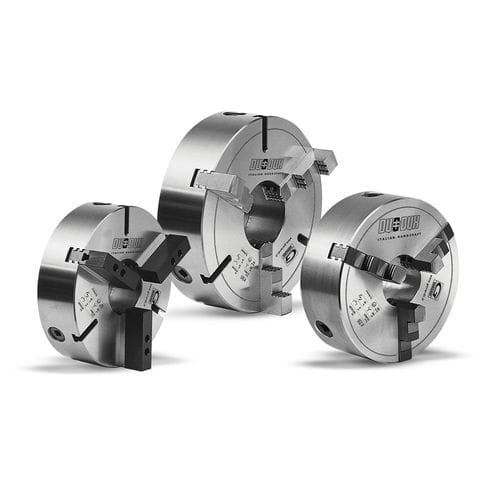

Self-centering turning chuck DUO-DUX3-jawfor latheshigh-precision
Add to favorites
Compare this product
Characteristics
- Number of jaws
- 3-jaw
- Other characteristics
- for lathes, self-centering, high-precision, high clamping force, double slotted
- Rotational speed
Max.: 3,200 rpm
(20,106.19 rad.min-1)Min.: 1,400 rpm
(8,796.46 rad.min-1)- Gripping force
Max.: 6,900 daN
Min.: 3,100 daN
- Outer diameter
Max.: 430 mm
(17 in)Min.: 160 mm
(6 in)
Description
DUO-DUX, the double guide self-centering manual chuck 100% Made in Italy.
It is made with double guided integral jaws, which can stand heavier charges and grant a better stability. The crown is ground with a special way studied by Gerardi to grant highest precision and repeatability. Every DUO-DUX chuck is balanced following the ISO3089/74 rules and supplied with the warranty and testing certificates. The chucks with diameter 365 and 430mm, suitable for heavy-duty machinings, keep the same technical features and precision of the chucks with lower diameters.
