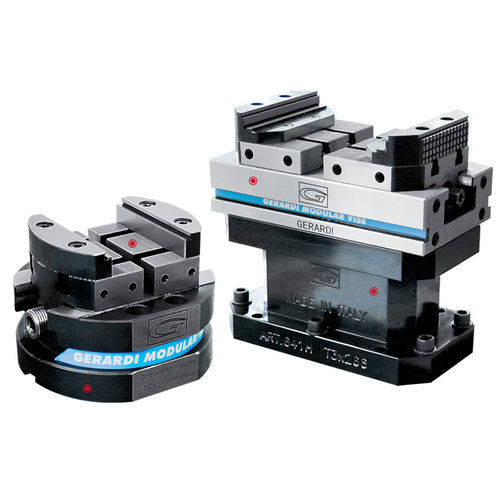

5-axis machine tool vise Multitasking

manualmodularscrew

Vises advanced applications on 5 axis machining centres MULTITASKING range of vises has been specially conceived for 5-axis machines. Working on 5 sides of the workpiece, it allows to optimize the machining cycle at its best. Thanks to the compact design, this kind of vise can be installed on all machining centres. The use of GRIP jaws is strongly recommended with Multitasking vise. No Wear Quick clamping Modularity & Versatility Highest Accuracies within 0,02 mm Rigidity & Safety Space saving Design & Handy HIGHEST ACCURACY in positioning and alignement (± 0,02 mm) thanks to the ground rack teeth on both the base and the fixed jaws. SPACER FOR MULTITASKING VISES Compatible with Multitasking vise, they allow to machine those parts usually hard to reach. These spacers are conceived for the positioning and removal of the work-piece with the vise fixed on the machine. SELF-CENTERING OR ECCENTRIC VISE TYPE 1&2 Type 1 jaw width 74 mm maximum spread 74 mm. Type 2 jaw width 99 mm maximum spread 104 mm. SELF-CENTERING OR ECCENTRIC VISE TYPE 3 Art. 640 Tipo 3x166 jaw width 138 mm maximum spread 111 mm. Art. 640 Tipo 3x266 jaw width 138 mm maximum spread 211 mm.
