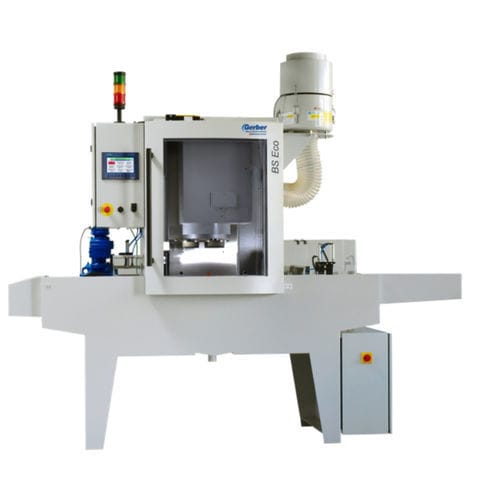

Punching deburring machine BS Eco

brushingsurfacingpolishing

The BS Eco is a planetary brush head plant for deburring and edge honing (solid) burrs on parts measuring up to a nominal maximum diameter of 250 mm, and is an efficient and precise brushing and deburring system for cost-effective one-sided machining. The machine is particularly suitable for precision components, such as stamping parts and fineblanking parts, flat turned and milled parts, sintered parts, laser and water jet cut parts as well as polishing of indexable inserts where there is a requirement for high surface quality and parts free of all burrs. Maximum productivity Efficient and economical deburring Easy to handle Manually operated basic version Optional fully controlled with automatic brush measurement (incl. compensation for the wear of the brush) Modular investment with options Two processes at the same time in one run Can be automated incl. data management (Industry 4.0) Main areas Consistent even deburring and radiusing of contours in a continuous process Efficient application of small and defined radii on precision parts from the areas of sintering, punching, turning and lapping. Characteristics of the machine Minimum space requirement with maximum throughput of deburring and edge honing precision parts Part-optimised holding of the workpieces through transport belts and pull-down magnet or link conveyor with workpiece carriers, cages or nests. Wide range of parts thanks to the conveyor system that is easily adapted to the parts Thanks to the height-adjustable brush head, the machine is versatile The right workpiece option for every task, whether deburring, honing or polishing.
