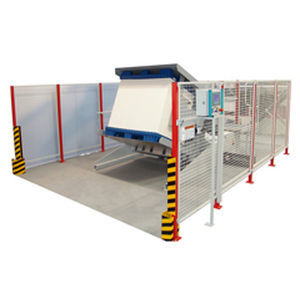

Stationary pile turner SWH-RLA series

with jogging system

Process acceleration is achieved by complete automation. The programmable fully automatic operation with reinforced hydraulics enables the high pile throughput. Reproducible pile treatment is possible by storable airing programs. The installation of protective fences with light barriers and the motorized-pneumatic aligning gauge with paper recognition enables the fully automatic operation. An access without machine stop is possible. The pile turner is equipped for 3 working cycles, selectable at the control desk: Turning the paper/board pile Airing, aligning and jogging the pile Airing, aligning, jogging and turning the pile Adjustable and programmable airing parameters: Measure of platform opening in airing position Number of air jet travels between the platforms Air volume Speed of air jets Jogging intensity Holding or compressing the pile Equipment: Fully automatic operation of all working cycles and airing programs Protective fences and light barriers Faster hydraulics by means of higher output and proportional flow control valve technics Powerful airing Fully automatic motorised-pneumatic aligning gauge with paper recognition Pressure control flaps Jogging device Regulation of air volume at the control desk Adjustment for "holding the pile" or "compressing the pile" Touch-screen-display for comfortable programming all functions, selection of working cycles, program memory for repeat jobs (100 programmable airing programs) and indication of error messages
