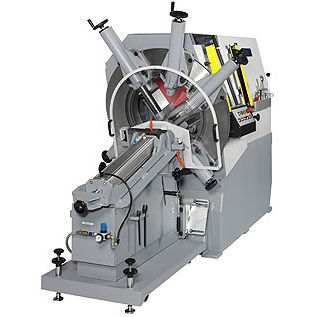

Die cutting machine CL

for PVCfor cardboardfor paper

The machine with counter-pressure unit is especially used when working with plastic material (PE or PP foil) for inmould labels. For large-size products of paper, board or PVC, where no counter-pressure is needed, the machine is fitted with a delivery tray in place of the counter-pressure unit. Standard equipment includes 5 adjustable clamping arms and waste slitters with holders. Once the stack of square cut sheets is inserted the cutting stroke is released by activation of the safety light barrier. • Max. die-cut size : mm : 330 x 380 • Min. die-cut size : mm : 80 x 100 • Max. stack height • (height of cutting die 90 mm) : mm : 170 • Max. diameter for circular products : mm : 365 • Die-cutting pressure : kg : 11.700 • Die-cutting strokes max. : p/min : 9 • Max. machine output • (for works without counter-pressure feeding 1000 sheets, label paper 80 gsm) : sheets/h : 540.000 * • Weight : kg : 2.600
