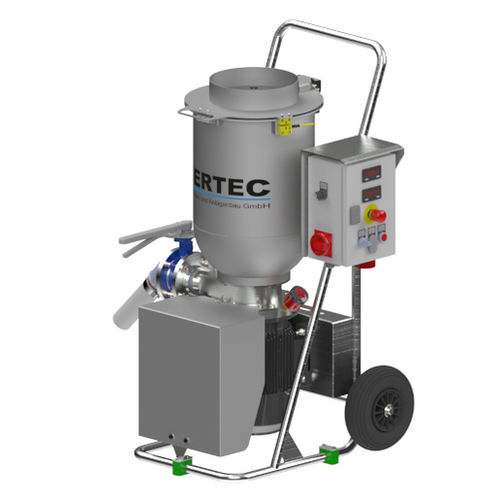

Batch mixer CIM-30-E

dynamicfor liquidssolid

Technical Data / Performance Data • Mixing water minimum, approx. 15 l • Mixer filling level, approx. : 950 mm • Solids grain size : maximum 2 mm • Dosage liquid : manually filling hole mixer cover • Dosage solid(s) manually filling hole mixer cover • Mixer outlet DN 40 • Power connection CEE-plug 16 A, 5-pole with phase inverter • Voltage 400 V; 50 Hz • Dimensions 0,7 x 0,6 x 1,25 m ( L x W x H) Mixing of: • Cement slurries • Anchor grout • Bentonite slurries • Filling material for peripheral sealing • Insulation slurries • Fly ash slurries • Anhydrite slurries • other solid-content suspensions (after technical clarification) The Batch Intensive Mixer CIM-30 is a compact mixer for the production of flowability slurries. It is particularly suitable for mixing bentonite and cement slurries, sealing wall compounds or other solid- containing suspensions. Features: ✓ Batch mixer 15-30 l effective volume (colloidal mixer); mixing container made of stainless steel, fast-running speed-controlled agitator; hinged mixer cover with safety-end switch and control and inspection port. Mixer drive with assembled frequency converter ✓ Moveable base frame (rubber tyres) ✓ Electrical function and power control • Main switch On/Off • Emergency-off-button • Mixer On/Off • Potentiometer [0-100 for speed adjustment of mixer drive • Display for engine speed or either engine power, incl. selector switch
