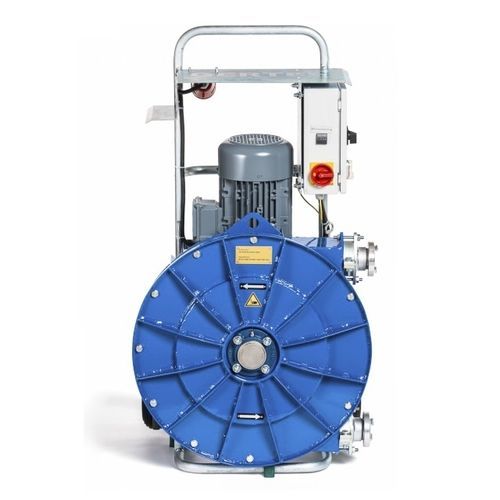

Peristaltic pump SP-550-2

slurrywaterelectric

Technical Data / Performance Data • Suction lift : max. 8 m • Solids grain size : max. 16 mm • Suction connection : Storz C 2“ standard coupling DIN 14307, alternatively 2“ AG, flange DN50 PN16 • Pressure connection : Storz C 2“ standard coupling DIN 14307, alternatively 2“ AG, flange DN50 PN16 • Power connection : CEE-plug 16 A, 5-pole • Voltage : 400 V; 50 Hz • Weight : approx.174 kg Application areas: • Special foundation engineering, Tunnelling (bored pile, cut-off wall, jet grouting) • Biogas production Pumping of: • Bentonite slurries, drilling fluids, sealing wall slurries, groundwater, mortar, slurries, dirty water; cement, fly ash or other solid-containing slurries • Return suspensions • Slurries Biomasses, Press water Features: ✓ Pump housing with housing cover in standard steel version ✓ Moveable pump frame (rubber tires) ✓ Pump drive with rotor bearing and flange bearing in the housing cover 2 flow rates by 2 different conveying speeds ✓ Pump rotor with rotatable mounted pressure rollers ✓ Steel pressure roles with roller bearings and eccentric adjustment (wear compensation of hose pump) ✓ Electrical function and power control with the following display and control elements: - Main switch ON/OFF - Pump ON/OFF - Selector switch reversing operation (forward/backwards)
