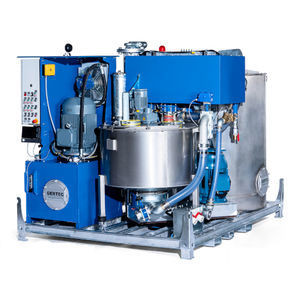

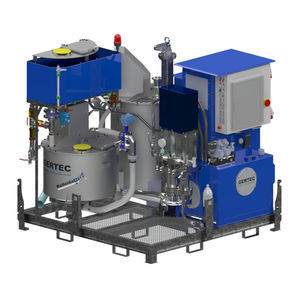

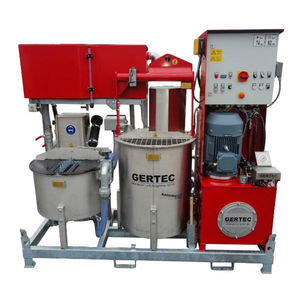

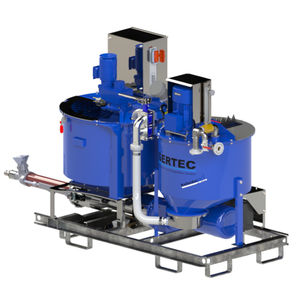

Civil engineering grout plant IS-33-E

for geothermal applicationfor tunnel

Technical Data / Performance Data • Effective mixer volume : 100 l • Mixing water minimum : 35 l • Mixer filling level (bag loading) : 850 mm • Buffer tank volume : 150 l • Flow rate approx. 40 l/min • Solids grain size : max. 2 mm • Pressure connection : VT 1“; type 25 mortar coupling VT 1“, alternatively 1“IG • Water connection : Storz C 1 ¼“ standard coupling DIN14307, max.6 bar; or Geka-claw coupling • Cleaning connection : DN 25 Geka-claw coupling • Power connection : CEE-plug 16 A, 5-pole with phase inverter • Power input 4,5KW • Voltage : 400 V; 50 Hz • Working dimensions : 1,44 x 0,71 x 1,43 m ( L x W x H) • Weight approx. 240 kg Application areas: • Geothermal application (peripheral filling for geothermal probes) • Well construction (seal water sealing, backfilling) • Tunnelling (delivery and injection of slurries, cavity filling) • Special civil engineering (delivery and injection of slurries, cavity filling) Mixing of: • Filling materials for peripheral filling • Cement slurries • Bentonite slurries • Mineral insulating slurries • Fly ash slurries
