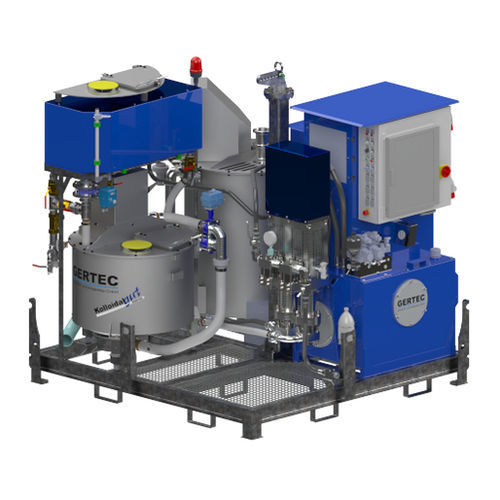

Civil engineering grout plant IS-80-EAHD
for tunnel

civil engineering grout plant
civil engineering grout plant
civil engineering grout plant
civil engineering grout plant
Add to favorites
Compare this product


Characteristics

Applications
for civil engineering, for tunnel
Capacity

5.6 m³/h
(197.76 ft³/h)

Pumping pressure

230 bar
(3,335.9 psi)

Description

Technical Data / Performance Data • Effective mixer volume : 280 l • Mixing water minimum : 90 l • Water tank capacity : 250 l • Agitator tank capacity : 560 l • Flow rate : 0 – 100 l/min, electr. continuously adjustable • Solids grain size : max. 2 mm • Pressure connection : 1 “ IG • Amount mixing components : 1 liquid 1 solid • Water connection : Storz C 2“ standard coupling DIN14307 • Cleaning connection : DN 25 Geka-claw coupling • Power connection : CEE-plug 1 x 63 A, 5-pole 1 x 32 A, 5-pole • Power input : 46 KW • Voltage : 400 V; 50 Hz • Dimensions : 2,27x2,28x2,39 m ( L x W x H) • Weight : approx. 2.300 kg Application areas: • Jetgrouting, Minijet • Anchor injection • Grouting • Ground injection Mixing of: • Cement slurries • Anchor grout • Bentonite slurries • Insulation slurries • Fly ash slurries
