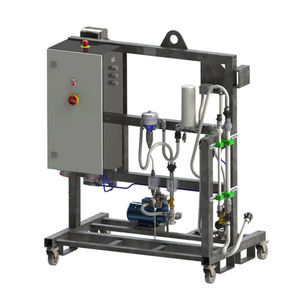

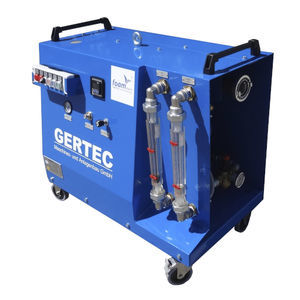

Foam generator SG-50-E

Technical Data / Performance Data • Foaming capacity : 2) 20 - 50 l/min Manual adjustable • Foam density 2) : 30 - 100 g/dm3 Manual adjustable • Foam agent dosage : 0,8 – 5,5 % Manual adjustable • Water connection : GEKA-coupling 3/4“, NW 17 • Required pipe pressure: > 2,0 bar • Water amount required : 7 l/min • Compressed air connection : NW 7,2 plug DIN EN ISO 228-1 • Required pipe pressure: > 6,0 bar • Air volume required : 60 l/min at 4 bar • Pressure connection foam :1“DN 25 IG alternatively, RD 32 round thread AG • Power connection : CEE-plug 16 A 5-pole with phase inverter • Voltage : 400 V; 50Hz • Protection class : 65 IP • Cable length remote control : 10 m • Dimensions : • 0,9 x 0,6 x 0,9 m (l x w x h) • Weight : ca. 96 Kg 1) The specified performance data are non-binding values that differ significantly depending on their respective product features. 2) The specified engine power depends on the foam density and of their respective product features. • Application areas: • Production of foam • Production of foam concrete screed • Production of light levelling mortar • Production of foam concrete stones
