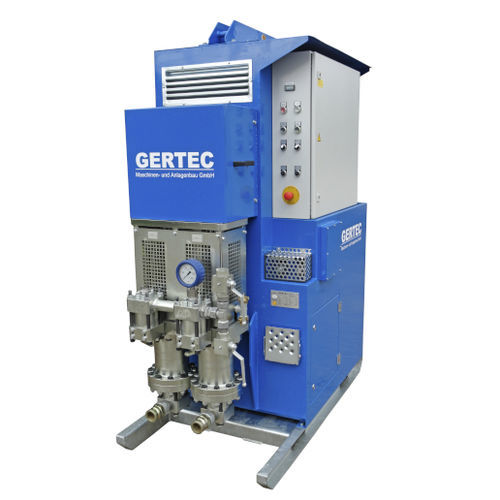

Plunger pump PP-80-EHDgroutwaterfor cement
Add to favorites
Compare this product
Characteristics
- Fluid
- water, grout, for cement
- Operation
- electric
- Priming
- self-priming
- Technology
- plunger
- Mobility
- stationary
- Domain
- industrial, for the construction industry
- Applications
- discharge, injection
- Material
- steel
- Fluid specification
- for viscous fluids
- Voltage
- 400 V
- Protection level
- rugged
- Other characteristics
- suction, standard, adjustable, micro
- Flow
Max.: 100 l/min
(26.41721 us gal/min)Min.: 20 l/min
(5.28344 us gal/min)- Pressure
230 bar
(3,335.868 psi)- Power
32 kW
(43.51 hp)- Length
155 cm
(61 in)- Width
0.8 m
(2'07" )- Height
2.05 m
(6'08" )- Weight
1,370 kg
(3,020.33 lb)
Description
Technical Data / Performance Data
• Solids grain size max. 4 mm
• Pressure connection 1“ IG
• Suction connection Storz C 2“ standard coupling DIN14307, alternatively 2“ IG
• Power connection CEE-plug 63A, 5-pole with phase inverter
• Voltage 400 V; 50 Hz
Application areas:
• Sealing, gap and conduct grouting
• Anchor injection, ground stabilization, rock injection
• Drill injection
• Jet grouting, pipe roof grouting
• Cavity filling
• Micro tunnelling
Discharge and grouting of :
• Cement, bentonite and tone slurries, water glass or other gels
• Cement slurries, anchor grout
• Bentonite and tone slurries
• Cement slurries
• Cement and fly ash slurries
• Bentonite, cement and insulation slurries
