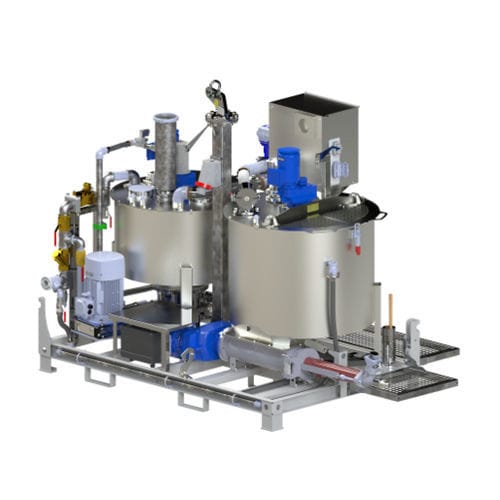

Batch mixer CMA-250-EA

dynamicsolid/liquidvertical

Technical Data / Performance Data • Mixing water minimum 80 l • Effective volume agitator tank 500 l • Flow rate dosing pump 15 - 60 l/min infinitely adjustable • Discharge pressure dosing pump max. 12 bar • Mixing components 5 1 liquid 2 solids 2 additives (Dosing unit optionally) • Solids grain size max. 2 mm • Pressure connection slurry pump VT 1“; type 25 motar coupling VT 1“, alternatively 1“ IG • Water connection Storz C DIN14307,max.6 bar; or Geka-claw coupling • Power connection CEE-plug 63 A, 5-pole • Voltage 400 V, 50 Hz • Transport dimensions 2,32 x 1,47 x 2,03 m ( L x W x H) • Mixer work dimensions 2,86 x 1,90 x 2,03 m ( L x W x H) Application areas: • Building materials industry (mixing and dosing of slurries in the production of • foam concrete / mineral foams) • Tunneling (cavity filling, injection, grouting) • Foundation engineering (cavity filling, injection, grouting) Characteristics: • processing of bagged goods or silo goods (bagged goods with manual sack loading) • the flow rate of the dosing pump is infinitely adjustable • easy operation, maintenance and cleaning • minimum mounting and start-up effort • optimal mixing quality (colloidal mixer) • minimum space requirements • minimum operating costs
