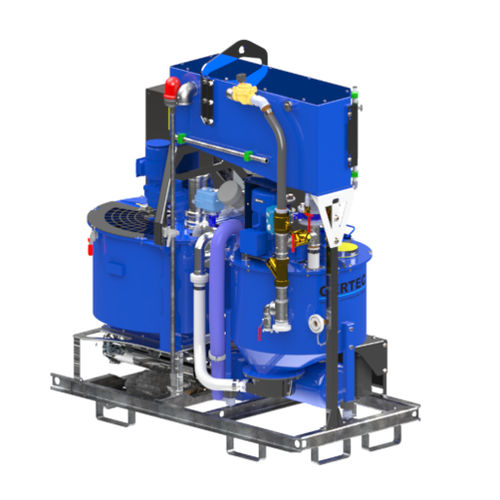

Civil engineering grout plant IS-35-EA

for geothermal applicationfor tunnel

Technical Data / Performance Data • Amount of mixing components • (automatic operation) : 1 x liquid 1 x solid • Effective mixer volume 150 l • Mixing water minimum 50 l • Mixer filling level (bag loading) 1020mm • Agitator tank volume 300 l • Water Tank volume 150 l • Flow rate stepless adjustable 20 - 100 l/min • Solids grain size max. 2 mm • Pressure connection VT 1“; Typ 25 mortar coupling VT 1“,alternatively 1“ IG • Water connection Storz C1 ½“ standard coupling DIN14307, max.6 bar; or Geka-claw coupling • Cleaning connection DN 25 Geka-claw coupling • Power connection CEE-Stecker 32 A, 5-pole with phase inverter • Power input 12,5 KW • Voltage 400 V; 50 Hz • Start/Stop signal cement screw Harting plug 4-pole • Transport dimensions approx. 1,92x0,97x2,15 m (L x W x H) • Working dimensions approx. 2,60x0,97x2,15 m (L x W x H) • Weight approx. 765 kg Application areas: • Anchor injection • Grouting • Cavity filling • Micro tunnelling • Ground injection • Bentonite lubrication Mixing of: • Cement slurries • Anchor grout • Bentonite slurries • Filling material for peripheral sealing • Insulation slurries • Fly ash slurries
