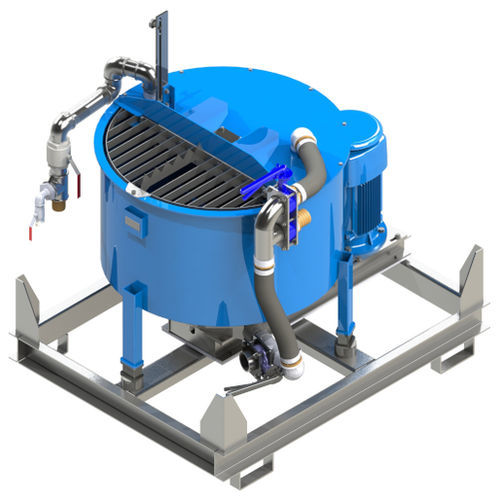

Batch mixer CM-500-E

dynamicfor liquidssolid

Technical Data / Performance Data • Mixing water minimum 165 l • Mixer filling level (bag loading) 1150 mm • Solids grain size max. 2 mm • Dosage liquid 2 1/2“ ball valve, manually • Level indicator (rough) 170 – 500 l; filling bar adjustable • Dosage solids manually bag loading grid • Mixer outlet Storz B 3“ standard coupling DIN 14307, alternatively 3“ IG • Water connection Storz C 2 1/2“ standard coupling DIN 14307, max.6 bar • Cleaning connection DN 20 Geka-claw coupling • Power connection CEE-plug 32 A, 5-pole with phase inverter • Voltage 400 V; 50 Hz • Dimensions 1,7 x 1,4 x 1,85 m ( L x W x H) Application areas: • Anchor injection, Ground stabilization, Rock injection • Drill injection • Jet grouting, Pipe roof grouting • Floor level injection • Geothermal applications • Cavity filling • Micro tunnelling Mixing of: • Cement slurries • Anchor grout • Bentonite slurries • Filling material for peripheral sealing • Insulation slurries • Fly-ash slurries
