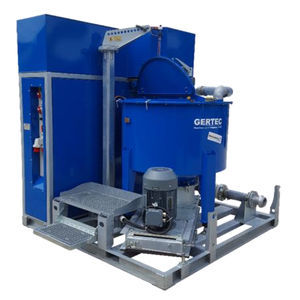

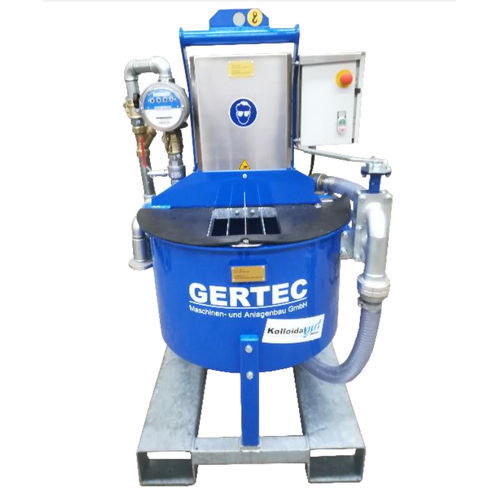

Batch mixer CM-150-E-strong

dynamicverticalcompact

Technical Data / Performance Data • Mixing water minimum 50 l • Mixer filling level (bag loading) 920 mm • Solids grain size max. 2 mm • Dosage liquid 11/2“ ball valve, manually • Dosage solids manually bag loading grid • Mixer outlet Storz C 2“ standard coupling DIN 14307, alternatively 2“ IG • Water connection Storz C 11/2“ standard coupling DIN 14307, max.6 bar; or Geka-claw coupling • Cleaning connection DN 20 Geka-claw coupling • Power connection CEE-plug 16 A, 5-pole with phase inverter • Voltage 400 V; 50 Hz • Dimensions 0,9 x 0,85 x 1,6m ( L x W x H) Application areas: • Anchor injection, Ground stabilization, Rock injection • Drill injection • Jet grouting, Pipe roof grouting • Floor level injection • Geothermal applications • Cavity filling • Micro tunnelling Mixing of: • Cement slurries • Anchor grout • Bentonite slurries • Filling material for peripheral sealing • Insulation slurries • Fly-ash slurries
