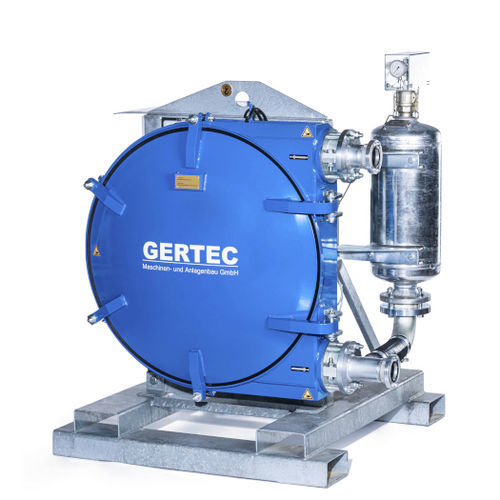

Peristaltic pump SP-900-1

waterslurryelectric

Technical Data / Performance Data • suction lift max. 8 m • solids grain size max. 24 mm • suction connection Storz B 3“ standard coupling DIN 14307, alternatively 3“ AG, flange DN80 PN16 • pressure connection Storz B 3“ standard coupling DIN 14307, alternatively 3“ AG, flange DN80 PN16 • power connection CEE-plug 32 A, 5-pole • voltage 400V; 50 Hz Application areas: • Special foundation engineering, Tunnelling (bored pile, cut-off wall, jet grouting) • Biogas production Pumping of: • Bentonite slurries, drilling fluids, sealing wall slurries, groundwater, mortar, slurries, dirty water; cement, fly ash or other solid- containing slurries • Return suspensions • Slurries • Biomasses, Press water Characteristics: • dry running • self-priming • reversible • low pulsation • high productivity • high operating reliability • easy wear compensation of the hose pump via eccentric adjustment • central lifting eye for crane handling • forklift handling from long and transverse side, lift truck handling from long side
