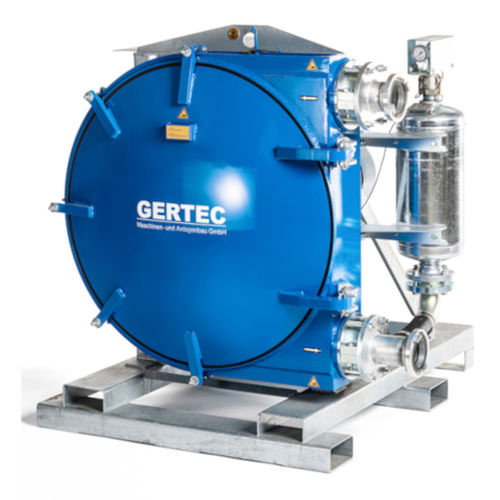

Peristaltic pump SP-1100-Fwaterslurrymortar
Add to favorites
Compare this product
Characteristics
- Technology
- peristaltic
- Fluid
- water, slurry, mortar
- Operation
- electric
- Priming
- self-priming
- Mobility
- stationary
- Domain
- industrial, for the construction industry
- Applications
- discharge, suction
- Material
- steel
- Fluid specification
- for viscous fluids
- Voltage
- 400 V
- Protection level
- rugged
- Other characteristics
- suction, flange
- Flow
Min.: 25 m³/h
(882.86667 ft³/h)Max.: 75 m³/h
(2,648.6 ft³/h)- Pressure
8 bar
(116.03 psi)- Power
31 kW
(42.15 hp)- Fluid temperature
50 °C
(122 °F)- Output diameter
100 mm
(3.937 in)- Length
157 cm
(62 in)- Width
1.69 m
(5'06" )- Height
1.63 m
(5'04" )- Weight
1,790 kg
(3,946.27 lb)
Description
Technical Data / Performance Data
• Suction lift max. 8 m
• Solids grain size max. 8 mm
• Suction connection Storz A
• 4“ standard coupling DIN 14307,
• alternatively 3“ AG, flange DN80 PN16
• Pressure connection
• Storz A
• A“ standard coupling DIN 14307,
• alternatively 3“ AG, flange DN80 PN16
• Power connection CEE-plug 63 A, 5-pole
• Voltage 400 V; 50 Hz
Application areas:
• Building construction and Civil engineering
• Special foundation engineering, Tunnelling
Pumping of:
• Light mortar
• Foam concrete
• Slurries
• Dirty water
• or other solid-containing slurries
